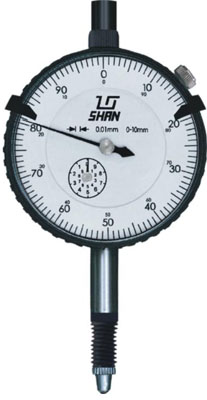

□  DIAL INDICATORS 538
        Features:
·
Round mechanical body.
·Plastic dial adjustable ring.
·With adjustable tolerance markers.
·With dial locking screw.

□  DIAL INDICATORS 539
        Features:
·
Round mechanical body.
·Plastic dial adjustable ring.
·With adjustable tolerance markers.
·Without dial locking screw.
·Measuring spindle sealed by means of rubber sleeve, thus
preventing contamination by liquid and impurities.




Item No.

 Range
(mm)

 Grad.
(mm)

A
(mm)

B
(mm)

C
(mm)

D
(mm)

E
(mm)

F
(mm)

d
(mm)

G
(mm)

538

538-050

0-3

0.01

38

17.5

9

Ф55.5

21

16

6.5

5

538

538-051

0-5

0.01

38

17.5

9

Ф55.5

21

16

6.5

5

538

538-053

0-10

0.01

38

17.5

9

Ф55.5

21

16

6.5

5

539

539-050

0-3

0.01

38

17.5

9

Ф55.5

21

16

6.5

5

539

539-051

0-5

0.01

38

17.5

9

Ф55.5

21

16

6.5

5

539

539-053

0-10

0.01

46

17.5

9

Ф55.5

21

16

6.5

5


□ DIGITAL INDICATORS

        Features:

·
Manual power on/off.
·Zero setting at any position.
·Metric/Inch system conversion at any position.
·With data output interface.


Item No.

 Range
(mm/in)

 Resolution
(mm/in)

A
(mm)
  Dia.
(mm)

  Accuracy
(mm)

540-100 0-5/0.2 0.01/0.0005"   8 2.5 0.03
540-200 0-5/0.2 0.01/0.0005"   9.5 2.5 0.03




□ DIGITAL TEST INDICATORS
       Features:
·
Manual power on/off.
·Zero setting at any position.
·Metric/Inch system conversion at any position.
·May be used to determine if the  measured item's dimension is within the predetermined tolerance of the indicator.




Item No.

 Range
(mm/in)

 Resolution
(mm/in)

A
(mm)
  Dia.
(mm)

  Accuracy
(mm)

563-005

+/-0.5/0.02

0.01/0.0005"

-- 2.5

+/-0.02"



7 [1] [2]  8
