NEW SHAN 240-XXXP Sheet Metal Caliper ....Take
the guesswork out of sheet measurement.
If you need to measure sheet metal flats or roll
stock in your incoming raw materials or process
inspection, you owe it to yourself to look at the new SHAN
240-XXXP Digital Sheet Metal Caliper. This product uses a
high precision SHAN Digital Scale with a "T"
Square Measuring Head and a Pin Anvil mounted to the face
of the scale to provide perfect sheet metal measurements.
This proprietary design eliminates cantilever defection
errors that are encountered when using traditional caliper
designs. The New SHAN 240-XXXP Sheet Metal Caliper,
developed in cooperation with a major US steel maker, has
virtually eliminated setup errors in the production of
steel roll stock.
|
|
|
Features:
– Proprietary " T
Square" measuring head with Pin anvil mounted on centerline of scale body eliminates the
deflection error that is found when using
conventional calipers
designs
– Easy to
read LCD display
– Data output port for SPC
– Available in 8",20",32" and 60"
ranges |
DIAL TEST INDICATORS 560
|
|
|
Features:
·Large measuring range. Easy to
read with small dial to indicate the number of
revolution
·Measurement for both clockwise and anticlockwise The
pointer changes direction automactically while the
measuring head moves forward or backward
·With the gradient of 12 of the dial, if can
supply exact reading
·The monoenclosure can ensure
the strength of its structure and the airtightness. |
|
|
item
|
Range (mm)
|
Grad (mm)
|
Dia.
(mm)
|
|
560
|
560-131
|
0
- 0.6/0 - 0.3"
|
0.01
- 0005“
|
Ø31
|
|
5360
|
560-031
|
-1.6
- +1.6
|
0.01
|
Ø38.4
|
|

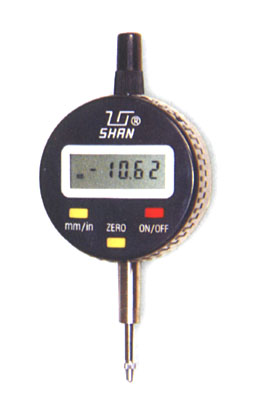

DIGITAL INDICATORS
|
 |
 |
Features:
·Manual power on/off
·Zero setting at any position
·Metric/inch system conversion at any position
·With data output interface
|
|
Item
|
Range
(mm)
|
Resolution
(mm)
|
A
(mm)
|
Dia.
.(mm)
|
Accuracy
(mm)
|
|
540-***
|
0 - 10
|
0.01/0.001
|
8
|
2.5
|
0.03
|
|

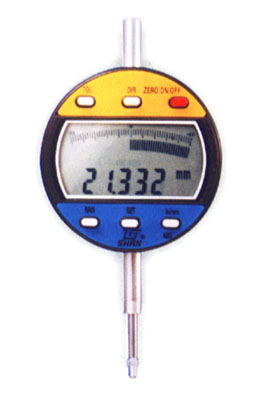

DIGITAL INDICATORS
|
 |
|
Features:
·With digital display and electronic scales.
·The LCD display and cover can be rotated to any degrees
·With multifunctions
|
|
Item
|
Range
(mm)
|
Resolution(mm)
|
|
546-***
|
0
- 10
0 - 12
|
0.005
0.001
|
|
|
|
|
|
|
|
|
|
