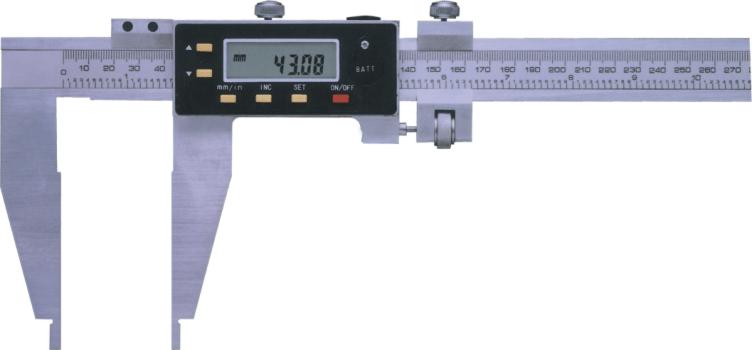

DIGITAL CALIPERS (Type III)
Features:

? Manual power off.
? Zero setting at any position.
? Metric/lnch system conversion at any position.
? With data output interface

Item No.

Range
 (mm/in)

Resolution
(mm/in)

A
(mm)

B
(mm)

C
(mm)

D
(mm)

H
(mm)

Price

112-325

0-200/8"

0.01/0.0005"

60

10

10

17

36.5

$20.00

112-335

0-300/12"

0.01/0.0005"

60

10

10

17

36.5

$30.00

  DIGITAL CALIPERS (Type IV)
Features:

? With step measurement.
? With data presetting function.
? Absolute measurement and comparison measurement conversion at any position.
? Metric/Inch system conversion at any position.


Item No.

 Range
(mm/in)

 Resolution
(mm/in)

A
(mm)

B
(mm)

C
(mm)

D
(mm)

113-550

0-500/20"

0.01/0.0005"

100/125/150

10

12

25

113-555

0-600/24"

0.01/0.0005"

100/125/150

10

12

25

113-560

0-800/32"

0.01/0.0005"

125/150/200

20

18

32

113-565

0-1000/40"

0.01/0.0005"

125/150/200

20

18

32

113-570

0-1500/60"

0.01/0.0005"

125/150/200

20

20

48

113-575

0-2000/80"

0.01/0.0005"

150/200/300

20

20

48

113-580

0-2500/100"

0.01/0.0005"

150/200/300

20

20

48

113-585

0-3000/120"

0.01/0.0005"

150/200/300

20

20

48

   DIGITAL CALIPERS (Type V)

Features
:

? Knife-edge measuring faces for internal measurement.
? With data presetting function.
? Absolute measurement and comparison measurement conversion at any position.
? Metric/Inch system conversion at any position.


Item NO.

Range
(mm/in)

Resolution
(mm/in)

A
(mm)

B
(mm)

C
(mm)

D
(mm)

H
(mm)

Price

114-550

0-500/20"

0.01/0.0005"

100/125/150

10

12

25/25/25

40/40/40

$60.00

114-555

0-600/24"

0.01/0.0005"

100/125/150

10

12

25/25/25

40/40/40

$70.00

114-560

0-800/32"

0.01/0.0005"

125/150/200

20

18

32/32/32

47/47/47

$110.00

114-565

0-1000/40"

0.01/0.0005"

125/150/200

20

18

32/32/32

47/47/47

$140.00

114-570

0-1500/60"

0.01/0.0005"

125/150/200

20

20

32/48/48

47/54.5/54.5

Call

114-575

0-2000/80"

0.01/0.0005"

150/200/300

20

20

48/48/48

54.5/54.5/54.5

Call
